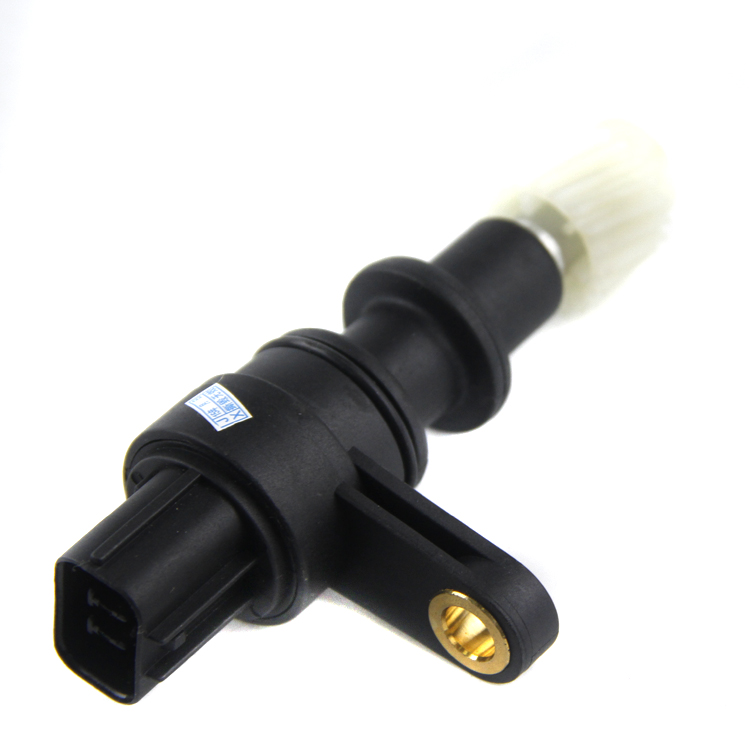

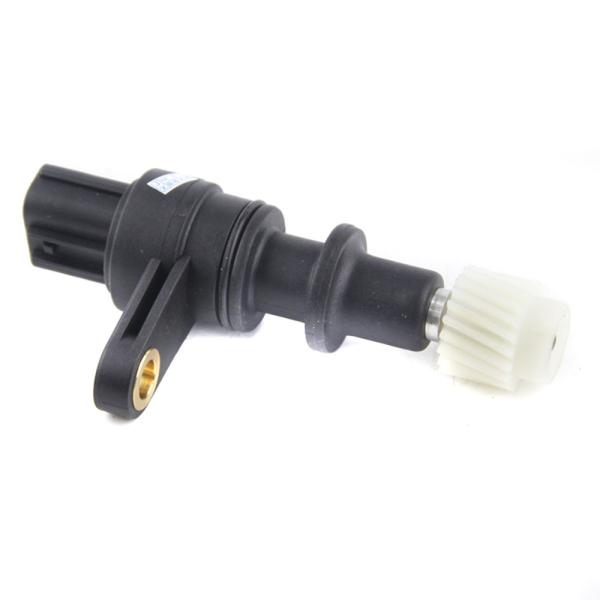

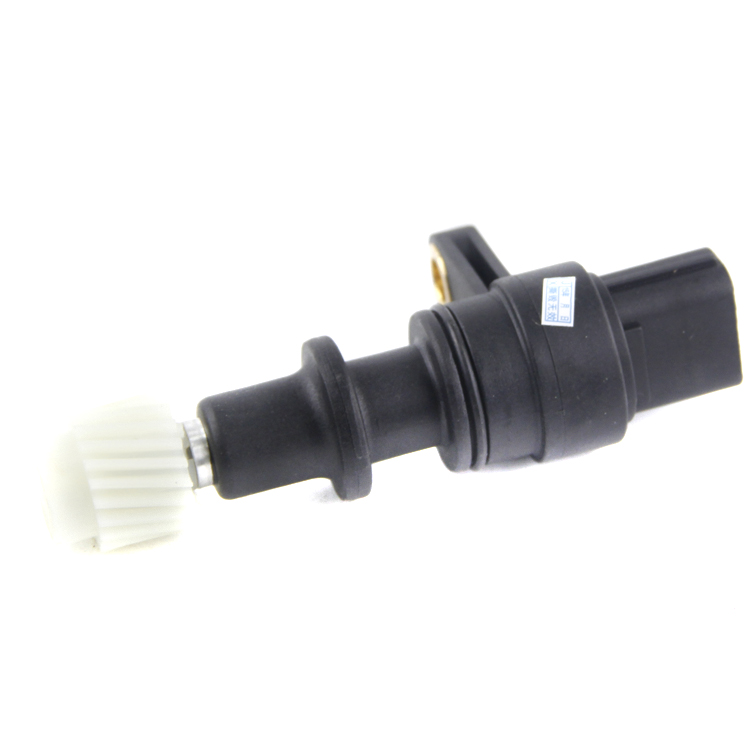

78410 - SAA - 003 Honda Civic Alternator SPEED SENSOR For Honda GD1
/ 3 / 6 / 8 / G11 / G12
Product introduction
How Speed Sensors Work: Speed Sensors
The output signal of the vehicle speed sensor can be a
magnetoelectric AC signal, a Hall type digital signal or a
photoelectric digital signal. The vehicle speed sensor is usually
installed in the drive axle housing or the transmission housing,
and the vehicle speed sensor signal line is usually installed in a
shielded shield. Inside the jacket, this is to eliminate
electromagnetic and radio frequency interference generated by
high-voltage electric live wires, car phones or other electronic
equipment, to ensure that electronic communications are not
interrupted, and to prevent poor driving performance or other
problems. Type and photoelectric sensors are the two most widely
used vehicle speed sensors, and magnetoelectric sensors are widely
used in various automobiles in Europe, North America and Asia for
vehicle speed (VSS), crankshaft angle (CKP) and camshaft angle
(CMP). ) control, and it can also be used to sense the speed and
position signals of other rotating parts, such as compressor
clutches.
How the Speed Sensor Works: How It Works
The output signal of the vehicle speed sensor can be a
magnetoelectric AC signal, a Hall-type digital signal or a
photoelectric digital signal. The vehicle speed sensor is usually
installed in the drive axle housing or the transmission housing,
and the speed of the car is displayed by the pointer swing. Or
generate an alternating current signal, usually consisting of a
magnetic core with two terminals and a coil. These two coil
terminals are the terminals of the sensor output, which are
converted into current amplitudes to indicate vehicle speed.
The working principle of the speed sensor: role
The vehicle speed sensor detects the speed of the electronically
controlled car, and the control computer uses this input signal to
control the engine idle speed, the automatic transmission torque
converter lock, the automatic transmission gear shift, the opening
and closing of the engine cooling fan, and the cruise control and
other functions.
Product Description
| OEM NO. | 78410-SAA-003 |
| Item Name | Speed Sensor |
| MOQ | Sample or trial order is accepted |
| Brand Name | MEILENG |
| In Stock | Yes |
| Proficiency | 98.50% |
| Price | Ex-factory LESS 10psc |
| 3% Discount 10--50psc |
| 5% Discount 50-100psc |
| 7%-8%Discount 100-200psc |
| 10% Discount MORE 200psc |
| Quality Warranty | Yes |
| Payment Terms | Alipay ,Escrow,Paypal,Western Union,T/T |
| Shipment Terms | China Post,Hongkong Post, EMS,FedEx,DHL,UPS |
Other car
| PART NAME | PART AND MODEL | OE ON |
| 78410-S04-951 | SENSOR ASSY., SPEED (DENSO) | EK3/MTM |
| 78410-S10-003 | SENSOR ASSY., SPEED (DENSO) | RD1/2 |
| 78410-S84-A01 | SENSOR ASSY., SPEED (DENSO) | CG5/CF9/CF8 |
| 78410-SAA-003 | SENSOR ASSY., SPEED (NS) | GD6/8/1/3/S1/ |
| 78410-SV4-003. | SENSOR ASSY., SPEED (MATSUSHITA) | CB/CD |
| 78410-SY0-003 | SENSOR ASSY., SPEED | CB/CD |
